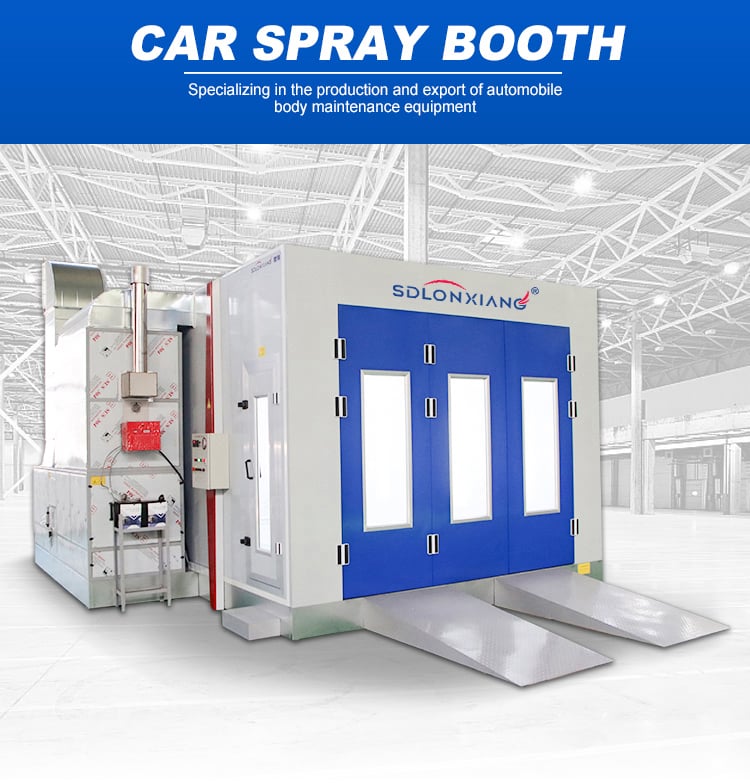

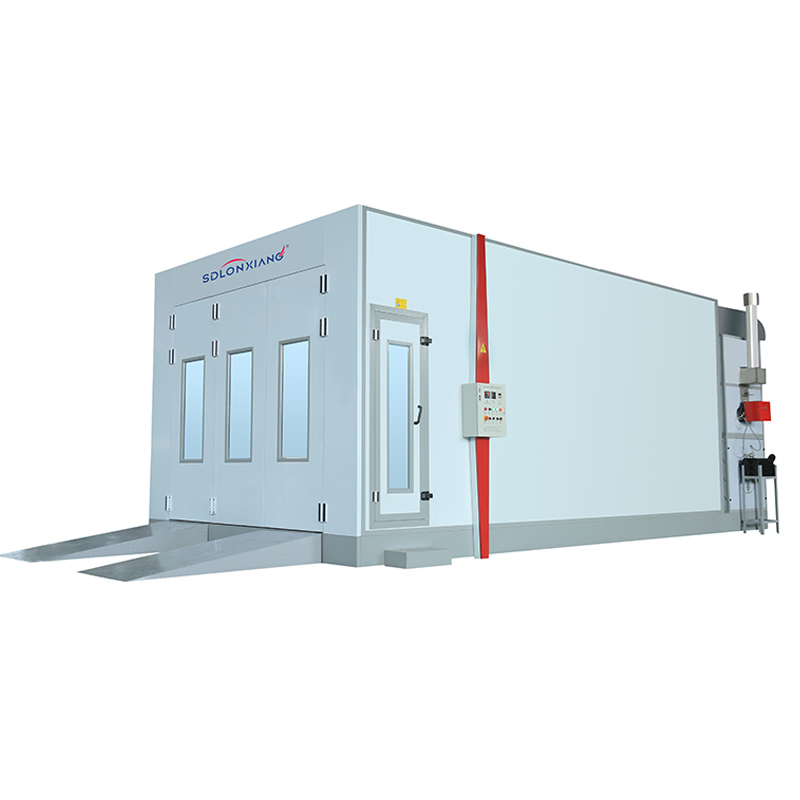

| Parameters | |
| Outside size | 7025*5200*3400mm(L*W*H) |
| Inside size | 6900*3900*2650mm(L*W*H) |
| Entrance door | 3 folds,3000*2600 mm(W*H), bending steel door , Aluminum hinge, tempered glass window. |
| Emergency door | 650*2000mm(W*H),pressure lock, observation window, one step. |
| Main System | ||
| Cabin system | Wall panel | -Sandwich style EPS 75mm,0.45mm thick colorful steel, anti-flame and heat-insulation.-High quality galvanized steel roof panel. |
| Basement | -Galvanized steel assemble, 280mm high, quadrate steel support, 5 rows of grills with 30*5mm, with height adjustable bolts-3 ramps,external setting,970*2000mm(W*L)/pc | |
| Ventilation system | Inlet fan | 2*4kw double-intake centrifugal fans, air capacity:12500m³/h for each set |
| Outlet fan | 1*7.5kw double-intake centrifugal fan, air capacity:20000m³/h for each set | |
| Cabinet setting type | -Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .-Cabinet for the fan*1unit ,air duct*2pieces,each piece is 910mm, -Elbow:90°*1 unit | |

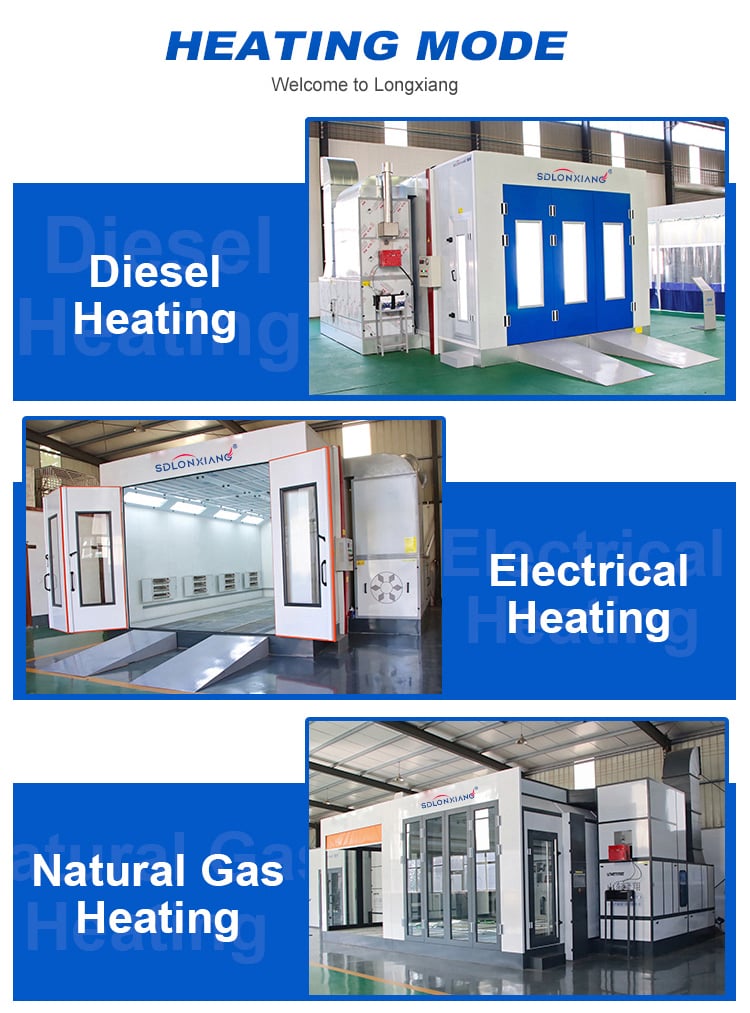

| Heating system | Burner | Italy RIELLO RG5S oil burner, heating capacity: 260000Kcal/h, with BELIMO 20N electric damper |
| Heat Exchanger | 1.5mm thickness SUS304 stainless steel | |
| Max.temperature | 80℃,heating time:6-8min(20-60℃),fuel consumption is 4-5kg/vehicle | |
| Cabinet | Rock-wool insulation*1 unit,heat insulation and preservation,inflaming retarding | |
| Lighting system | Ceiling lights | 8*4pcs*16w LED lighting |
| Side lights | 8*4pcs*16w LED lighting | |
| Filtering system | Primary filter | Grade G2 plate type , filtering rate＞83% |
| Ceiling filter | EU5 grade high efficient filter,filtering rate＞98% | |
| Floor filter | Multi-layer fiberglass filter,filtering rate＞70% | |
| Active carbon | Small cabinet with activated carbon granule | |
| Control system | Control panel | Micro-computer control system |
| Function | Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc | |
| Total power | 16.5KW | |
| Voltage/Frequency | 380V,50HZ,3 phase | |
