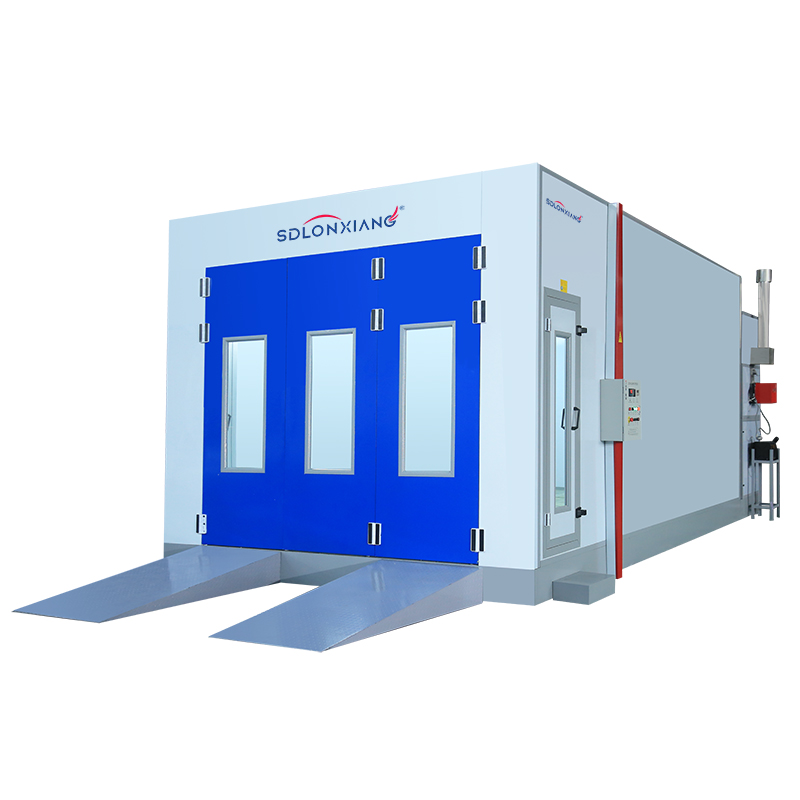

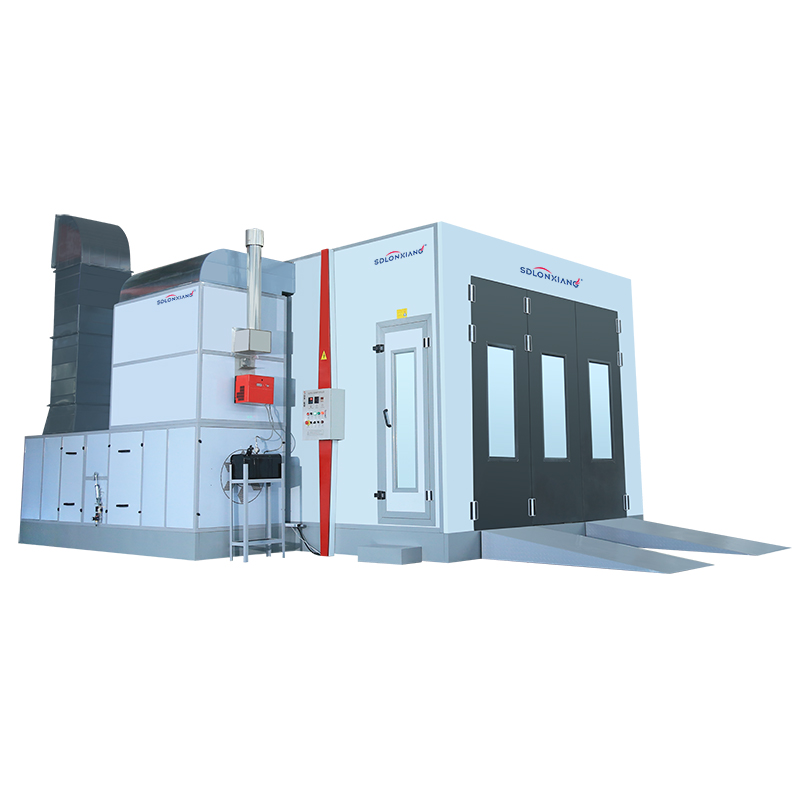

| LX-D5 | |
| Outside size | 7000×5200×3400mm(L×W×H) |
| Inside size | 6900×3900×2650mm(L×W×H) |
| Entrance door | 3 folds,3000x2600 mm(W×H), bending steel door , Aluminum hinge, tempered glass window. |
| Emergency door | 650*2000mm(W*H),equipped with handle lock |
| Main System | ||
| Cabin system | Wall panel | -Sandwich style EPS 50mm,0.45mm thick steel, anti-flame and heat-insulation.-High quality galvanized steel roof panel. |
| Basement | -Galvanized steel assemble,280mm high,with steel structure support,5 rows of 30*5mm grills .-3 ramps,external setting,970*2000mm(W*L)/pc | |
| Ventilation system | Inlet fan | 1*7.5kw double-intake centrifugal fans, Each set air capacity:20000m³/h |
| Outlet fan | 1*7.5kw double-intake centrifugal fans, Each set air capacity:20000m³/h | |
| Cabinet setting type | -Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .-Cabinet for the fan*1unit ,air duct*2pieces,each piece is 910mm, -Elbow:90°*1 unit | |
| Airflow speed | On-load speed:0.4m/s,ventilation rate:315 times/h | |
| Heating system | Electric | Adopt infrared heating system, 10 sets of 3KW far-infrared lamp. Maximum operating temperature: 80℃, heating rate (20-80℃) : 15-20min. |
| Lighting system | Ceiling lights | 8units*4pieces*16w LED Lighting |
| Side lights | 5units*4pieces*16w LED Lighting | |
| Filtering system | Primary filter | Grade G2 plate type , filtering rate＞83% |
| Ceiling filter | EU5 grade high efficient filter,filtering rate＞98% | |
| Floor filter | Multi-layer fiberglass filter,filtering rate＞70% | |
| Control system | Control panel | Intelligent control system |
| Function | Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etc | |
| Total power | 49 KW | |
| Voltage/frequency | 380V,50HZ,3phase | |
