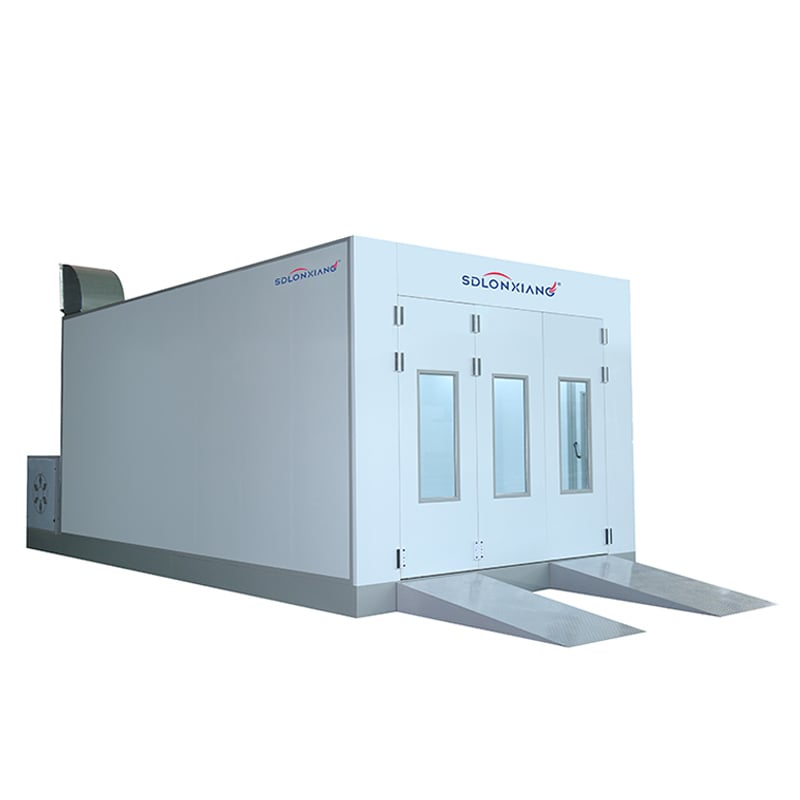

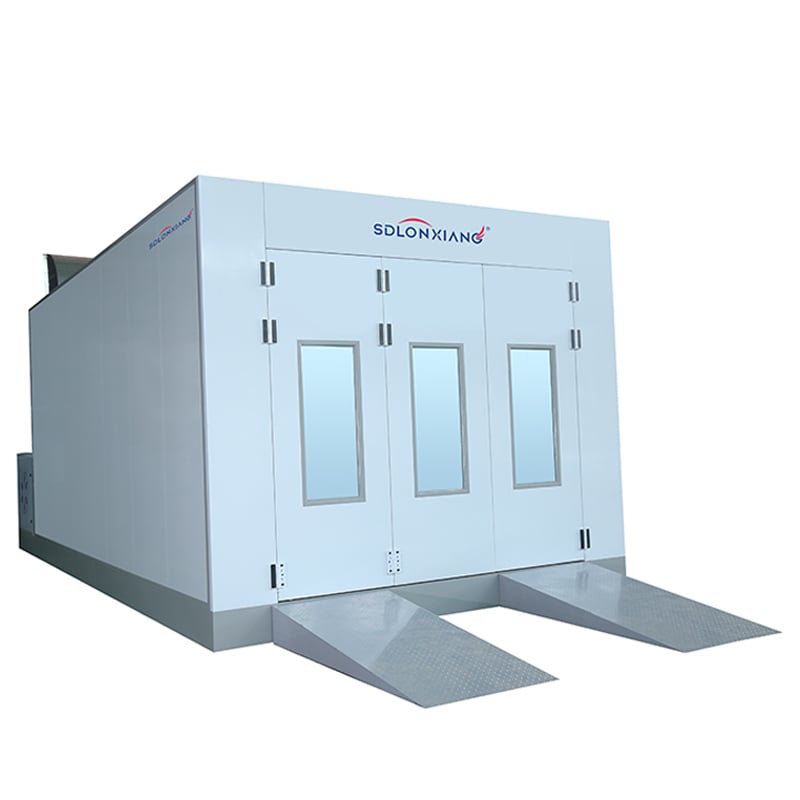

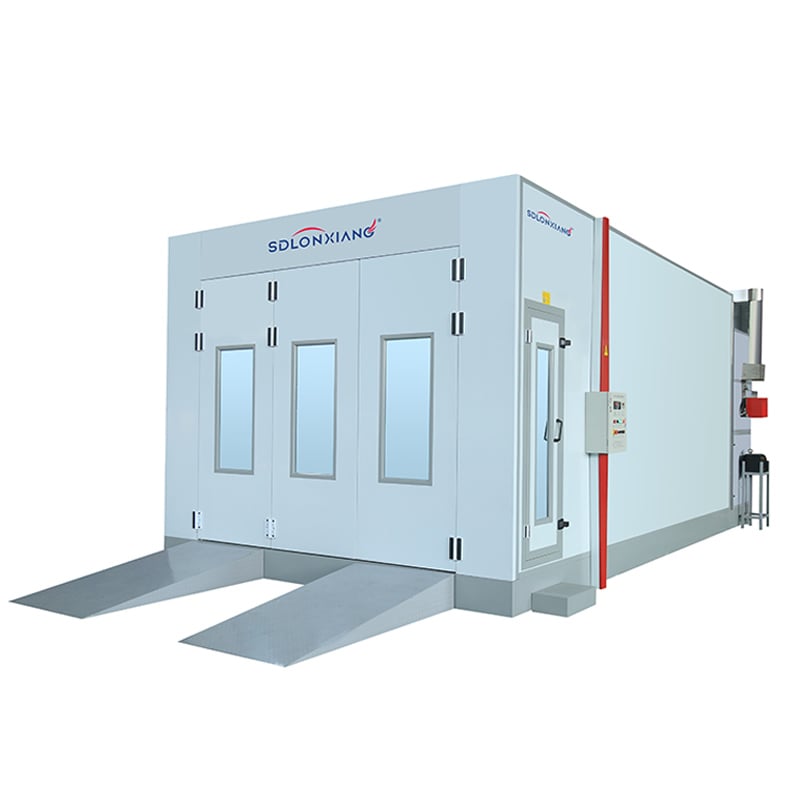

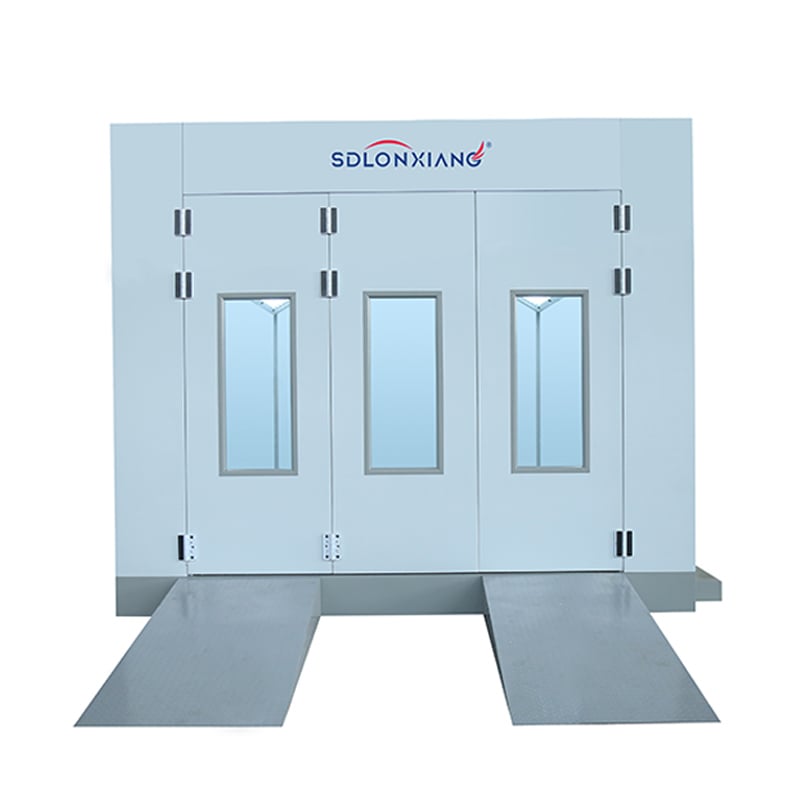

| LX-D2 | ||
| Outside size | 7000×5200×3400mm(L×W×H) | |
| Inside size | 6900×3900×2650mm(L×W×H) | |
| Entrance door | 3 folds,3000x2600 mm(W×H), bending steel door, aluminum hinge,tempered glass window | |
| Emergency door | 650*2000mm(W*H),equipped with handle lock, observation window | |
| Cabin system | Wall panel | -Sandwich style EPS 50mm,0.376mm thick color steel plate.-High quality galvanized steel roof panel. |
| Basement | -Galvanized steel assemble,280mm high,quadrate steel support,3 rows of grills,2 rows of diamond plates-2 ramps, 620*2000mm(W*L)/pc | |
| Ventilation system | Inlet fan | 2*3kw double-intake centrifugal fans, model: YDW4.5M1, air capacity:10000m³/h for each set |
| Outlet fan | Optional | |
| Cabinet setting type | -Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .-Cabinet for the fan*1unit ,air duct:2*910mm, -Elbow:90°*1 unit | |
| airflow speed | On-load airflow speed:0.3m/s,ventilation rate:260times/h | |
| Heating system | Electric heating | Adopt infrared heating system, 10 sets of 3KW single door far-infrared lamp. Maximum operating temperature: 80℃, heating rate (20-80℃) : 15-20min. |
| Lighting system | Ceiling lights | 8*4pcs*16w LED lighting |
| Side lights | optional | |
| Filtering system | Primary filter | Grade G2 plate type , filtering rate＞83% |
| Ceiling high efficient filter | EU5 grade high efficient filter,filtering rate＞98% | |
| Control system | Control panel | Intelligent control system |
| Function | Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc | |
| Total power | 37KW | |
| Voltage/Frequency | 380V,50HZ,1phase | |
